Description

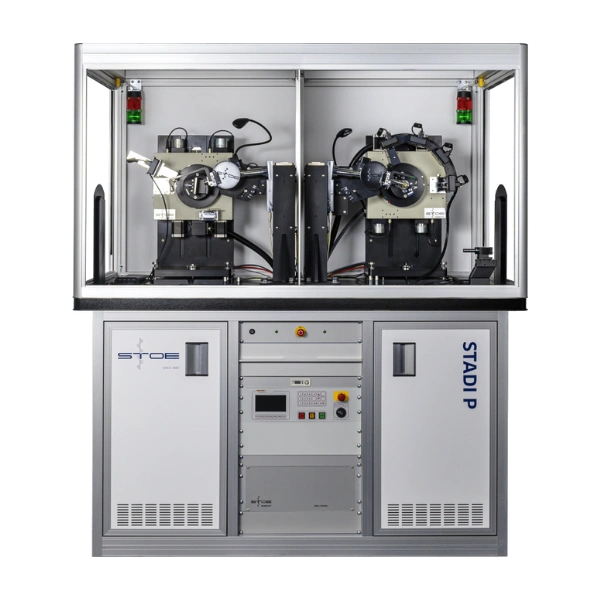

STADI P X-Ray Diffraction System
The STADI P by STOE is a high-precision X-ray diffraction system designed for advanced powder diffraction analysis, offering exceptional flexibility in configuration and performance.
Key Features
- Single-photon-counting X-ray detectors (MYTHEN series)
- Pure Kα1 radiation using Co, Cu, Mo, and Ag sources
- Measurement modes: Transmission/Debye-Scherrer and Bragg-Brentano
- Ideal for micro-samples and air/moisture-sensitive materials
- Fully compatible with Pair Distribution Function (PDF) analysis
Advantages
- High accuracy with no need for additional mathematical corrections
- Stable intensity across the full 2θ range
- No height displacement or line broadening for weak absorbers
- Enables true micro-sampling
- Reduced effects of preferred orientation
Specifications
- 2θ range: 0° – 140°
- Goniometer: 2-circle system
- Measuring radius: 260 mm
- X-ray sources: Co, Cu, Mo, Ag (sealed tubes)
- Software: WinXPOW
- Dimensions: 1800 × 880 × 2050 mm
- Weight: 780 – 940 kg
Advanced Technology
- ADAMAnT: Automated alignment and beam optimization system, eliminating manual adjustments
- Multi-detector configuration for ultra-fast measurements
- Optimized for high-quality PDF data collection using Ag Kα1 radiation
Software & Accessories
Powered by WinXPOW, offering:
- Instrument control
- Data reduction and analysis (profile fitting, indexing, space group determination)
- Advanced 2D and 3D visualization tools
A wide range of accessories is available:
- High- and low-temperature chambers
- Reaction chambers
- Sample changers
- Battery cell holders
- Various sample stages
