DensiPyc 1000

Description

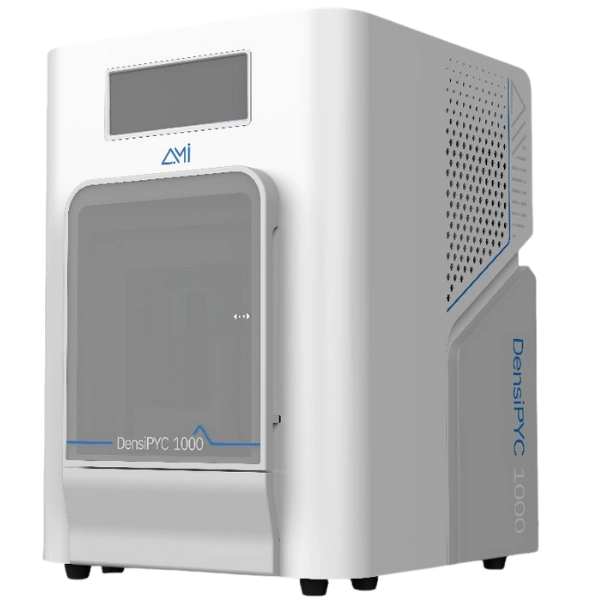

DensiPyc 1000 – True Density Analyzer

The DensiPyc 1000 by AMI Instruments is an advanced gas pycnometer designed for precise and repeatable true density measurements. Combining intelligent automation with flexible configurations, it ensures reliable results for both research and quality control environments.

Key Features

• Temperature-controlled operation (4–60°C, TC models)
• Integrated microbalance for accurate in-situ weighing (B models)
• Fully PC-controlled with automated data recording
• Optional vacuum degassing down to 10 kPa (V models)
• Compliant with ISO 12154 and major international standards

Core Advantages

• Automated Chamber Sealing ensures consistent measurement conditions and repeatability
• Smart Reference Volume Selection improves volumetric accuracy across sample sizes
• Integrated Weighing reduces handling errors and increases traceability
• Temperature Stability guarantees reliable results for sensitive materials
• Vacuum Pre-treatment enhances sample consistency and measurement precision

Model Variants

• DensiPyc 1000 – Standard model for routine density measurements
• DensiPyc 1000 TC – With temperature control for sensitive samples
• DensiPyc 1000 B – With integrated balance for automated weighing
• DensiPyc 1000 V – With vacuum degassing for sample pre-treatment
• DensiPyc 1000-TCBV – Full configuration with all features combined

Applications

• Additive manufacturing powders (metal & polymer)
• Catalysts and porous materials
• Pharmaceuticals and nutraceuticals
• Polymers, ceramics, and refractories
• Cement and construction materials

Software & Workflow

The system features an intuitive software environment with:

• Predefined test methods for fast operation
• Automated data processing and report generation
• Export options (PDF, TXT, Excel)
• Batch comparison and trend analysis tools

Specifications (Summary)

• Test gases: Helium, Nitrogen, inert gases
• Pressure range: 0 – 300 kPa
• Accuracy: up to ±0.02%
• Repeatability: up to ±0.01%
• Sample volumes: 100 mL, 35 mL, 10 mL
• Temperature stability (TC): ±0.01°C
• Dimensions: 465 × 350 × 370 mm
• Weight: ~10 kg
