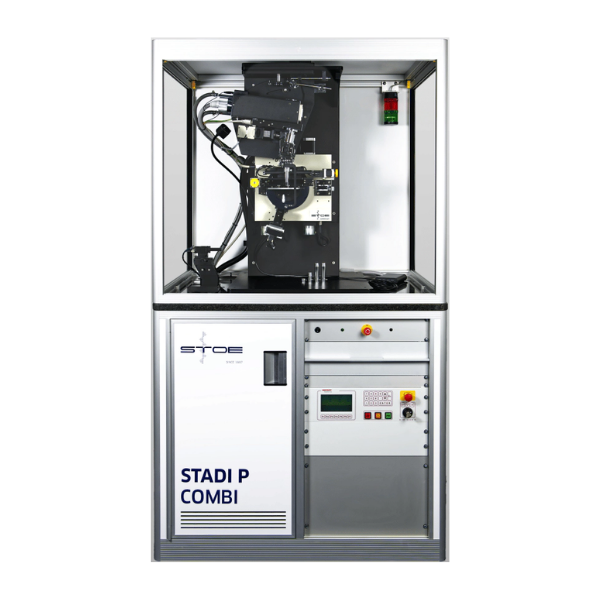

STADI P COMBI X-Ray Diffraction System
The STADI P COMBI by STOE is a high-throughput powder diffraction system designed for rapid combinatorial analysis. Built on the proven STADI P platform, it combines precision measurement with exceptional efficiency for multi-sample workflows.
Key Features
- 96-fold sample stage for simultaneous multi-sample analysis
- User-definable x-y grid for flexible sample positioning
- Pure Kα1 radiation using Co, Cu, Mo, or Ag sources
- Transmission geometry for high data reliability
- Optimized for high-throughput and combinatorial measurements
Core Advantages
- Rapid phase identification and similarity analysis across multiple samples
- Consistent measurement conditions with fixed sample-to-detector distance
- High efficiency for research and quality control environments
- Retains all precision and accuracy benefits of the STADI P system
System Capabilities
- Designed for automated workflows and batch processing
- Ideal for screening up to 96 samples in a single setup
- Stable and reproducible data across all sample positions
- Flexible configuration with various sample holders and stages
Specifications (Summary)
- 2θ range: 0° – 140°
- Goniometer: 2-circle system
- Measuring radius: 260 mm
- Focusing radius: 160 mm
- X-ray sources: Co, Cu, Mo, Ag (sealed tubes)
- Detector: MYTHEN2 R 1K silicon strip detector
- Software: WinXPOW
- Dimensions: 1100 × 880 × 2050 mm
- Weight: ~650 kg
Software & Accessories
Powered by WinXPOW, providing:
- Instrument control and automation
- Data reduction and analysis (profile fitting, indexing, space group determination)
- Advanced 2D and 3D visualization
Available accessories include:
- x-y stage and multiple sample stages
- High- and low-temperature chambers
- Reaction chambers and sample changers
- Specialized holders such as battery cell modules
Applications
- High-throughput material screening
- Phase identification and comparison studies
- Combinatorial materials research
- Quality control and batch analysis
