Description

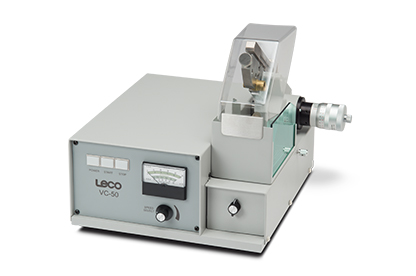

The LECO VC50 Precision Diamond Saw is designed for precision sectioning of ceramics, minerals, metals, and electronic components. It produces sectioned samples up to 1.5 in (38 mm) in diameter with minimal material loss and deformation.
The instrument features patented electronic speed control that monitors and maintains constant cutting speeds of up to 500 RPM under various load conditions. A built-in tachometer displays cutting speed in surface feet- or meters-per-minute for easy monitoring during operation.
The VC50 is supplied complete with a 5 in (127 mm) × 0.014 in (0.38 mm) diamond blade for precise and consistent cutting performance.
Key Features
- Precision sectioning with minimal material loss and deformation
- Suitable for ceramics, minerals, metals, and electronic components
- Variable speed selection from 0 to 500 RPM
- Patented electronics maintain constant cutting speed under varying load conditions
- Precision micrometer with inch and millimeter graduations for accurate sample positioning
- Sliding weight assembly for convenient load application
- Automatic shut-off for unattended operation
- Integrated vise for samples up to 1.5 in (38 mm) in diameter
- Tachometer display in surface feet- or meters-per-minute
- Includes 5 in (127 mm) × 0.014 in (0.38 mm) diamond blade
Applications
- Precision sectioning of ceramics
- Precision sectioning of minerals
- Precision sectioning of metals
- Precision sectioning of electronic components
Technical Specifications
| Specification | Description |
|---|---|
| Sample Capacity | Up to 1.5 in (38 mm) diameter |
| Blade Size | 5 in (127 mm) Diamond Blade |
| Blade Thickness | 0.014 in (0.38 mm) |
| Speed Range | 0–500 RPM |
| Speed Control | Patented electronic constant-speed control |
| Sample Positioning | Precision micrometer (inches and millimeters) |
| Load Application | Sliding weight assembly |
| Sample Holder | Integrated vise (up to 1.5 in / 38 mm) |
| Display | Tachometer (surface feet- or meters-per-minute) |
| Operation | Automatic shut-off |
Standard Configuration
- LECO VC50 Precision Diamond Saw
- 5 in (127 mm) × 0.014 in (0.38 mm) diamond blade
- Integrated sample vise
- Precision micrometer
- Sliding weight assembly
- Automatic shut-off system
- Tachometer display
