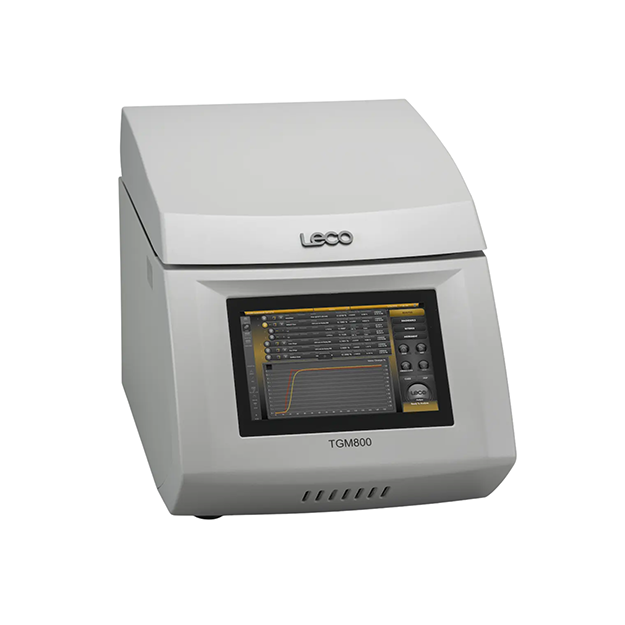

LECO TGM800 Thermogravimetric Moisture

Moisture
LECO’s thermogravimetric moisture determinator, the TGM800, provides a high precision, automated solution, which utilizes a direct method for replacing the slow labor intensive, traditional loss-on-drying analytical techniques. The TGM800 offers a number of time-saving features such as the ability to automatically measure up to 16 samples at a time with optional drying time end point recognition, and intuitive touch-screen software with flexible method settings. The TGM800 is applicable to a wide variety of sample matrices including food, feeds, milled products, and agricultural materials, making it a versatile solution for many laboratories.

Cornerstone Mobile remote software keeps the user updated from their smartphone on the instrument’s analysis batch progress, performance, and status while away.

Description

  • HIGH THROUGHPUT AND MINIMAL OPERATOR TIME PROVIDING MAXIMUM PRODUCTIVITY AND OPTIMAL WORK FLOW

    • Automated loss-on-drying moisture analysis of up to 16 samples
    • Maximized throughput with rapid ramping of the oven temperature to the method set point and fast cooling post analysis
    • Optimized drying time with automatic end point recognition based upon sample mass constancy
    • Limited sample interaction requirements reduce operator handling time
    TGM800 lid open weighting samples sm

    SUPERIOR ANALYTICAL PERFORMANCE WITH VERSATILITY

    • An integrated balance with 0.0001 g resolution provides stable sample mass measurement throughout the analysis cycle
    • Precise over temperature ramping and set point control
    • Flexible method settings with optional sample mass constancy drying time
    • Automation sequence provides uniform exposure of samples to the oven drying
    • Automated multi-sample analysis cycle
    • Supports analysis cycle capacitates of:
      • 16 samples using 1.5 inch diameter
        aluminum foil crucibles
      • 10 samples using 2.4 inch diameter aluminum foil crucibles
    TGM800 lid open Large samples sm



INNOVATIVE SYSTEM DESIGN

  • Rugged, hard-coat anodized aluminum oven and carousel construction supports rapid heating and cooling cycles while providing an easy-to-clean surfaceTGM800 no carousel sm
  • Robust and reliable motor-driven system automation mechanisms
  • Integrated 10.1 inch (diagonal) color LCD touch-screen reduces instrument footprint, and promotes an ergonomic and efficient workflow.



INTUITIVE CORNERSTONE SOFTWARE



LECO’s exclusive software with touch-screen interface enables access to analysis control, method settings, diagnostics, reporting, and more in a highly organized, intuitive, immersive environment. Our grouping of sample data into sets and replicates simplifies data output and automatically calculates relevant statistics. It also provides seamless sample login and loading process with real-time graphical displays of analysis cycle data.
