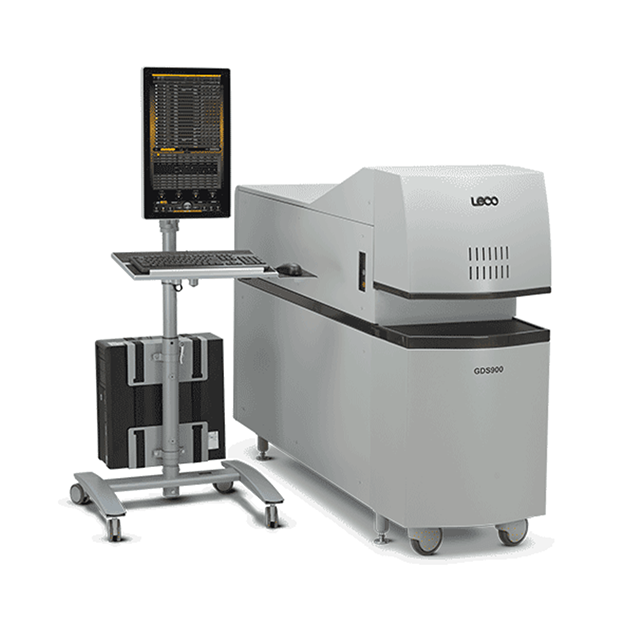

LECO GDS900 Glow Discharge Atomic Emission Spectrometer

LECO’s Glow Discharge Spectrometer (GDS) offers you state-of-the-art technology designed specifically for routine elemental determination in most conductive ferrous and nonferrous materials. The GDS900 features improved performance, stability, accuracy, and precision in steel, iron (including as-cast), aluminum, copper, zinc, nickel, cobalt, tungsten, and titanium materials, while featuring our user-friendly Cornerstone® brand software to help streamline your analysis.


Glow Discharge Source Advantages

  • Simple, linear calibrations when compared to other sourcesGDS900 Lamp Area sm
  • Controlled excitation that occurs away from the sample surface
  • Reduced reference material consumption

Detection System Advantages

  • The inherent sensitivity, dynamic rangeGDS900 Spectrometer Area sm and linearity of CCD detectors coupled with the GD source ensures stability, flexibility, and performance for all bulk elemental applications
  • Full wavelength coverage from 160 nm to 460 nm
  • 50 pm (0.050 nm) resolution to differentiate even the most complex features of bulk spectra

System Level User Advantages

  • Very easy to operate, maintain, and serviceGDS900 loading sample sm
  • Automatic cleaning between samples saves time, minimizes matrix effects for increased precision
  • Open lamp design and ambidextrous controls allow both right and left hand operation

    LECO’s exclusive software with touch-screen interface enables access togds 900 screens smanalysis control, method settings, diagnostics, reporting, and more in a high organized, intuitive, immersive environment. Our grouping of sample data into sets and replicates simplifies data output and automatically calculates relevant statistics.


    • Reduces nitrogen consumption by more than 1200% annuallyGDS900 optional nitrogen rec sm1
    • Reduces cost-per-analysis by almost 58%
    • Improves overall system stability and increases uptime


  • GDS900C Package with PC, touch-screen, software
  • GDS900RC Package with PC, touch-screen, software, nitrogen purge recirculation


  • Integrated desk or mobile workstation
  • Recirculating nitrogen purge system
  • Extension spectrometer extends spectral coverage from 460 to 850 nm
  • Vacuum pump sound abatement enclosure
  • SmartLine® Remote Diagnostics
  • Consumables
